Outdoor Living / Camping Wagon

PRODUCT ID · OG-CW-002

Push-Pull Collapsible Camping Wagon

OEM push-pull collapsible camping wagon with a carbon-steel frame, double-layer 600D Oxford fabric, 360° swivel front wheels and customizable colors.

Mixed MaterialCarbon Steel + Double-Layer 600D Oxford Fabric + PP Wheels + PVC Baseboard
Request a quote

The Product ID is added to the RFQ automatically.

PRODUCT IMAGE EVIDENCE

Features, construction, specifications and application.

All supplied product assets are organized by Product ID. Values shown in artwork are confirmed again in the final project specification.

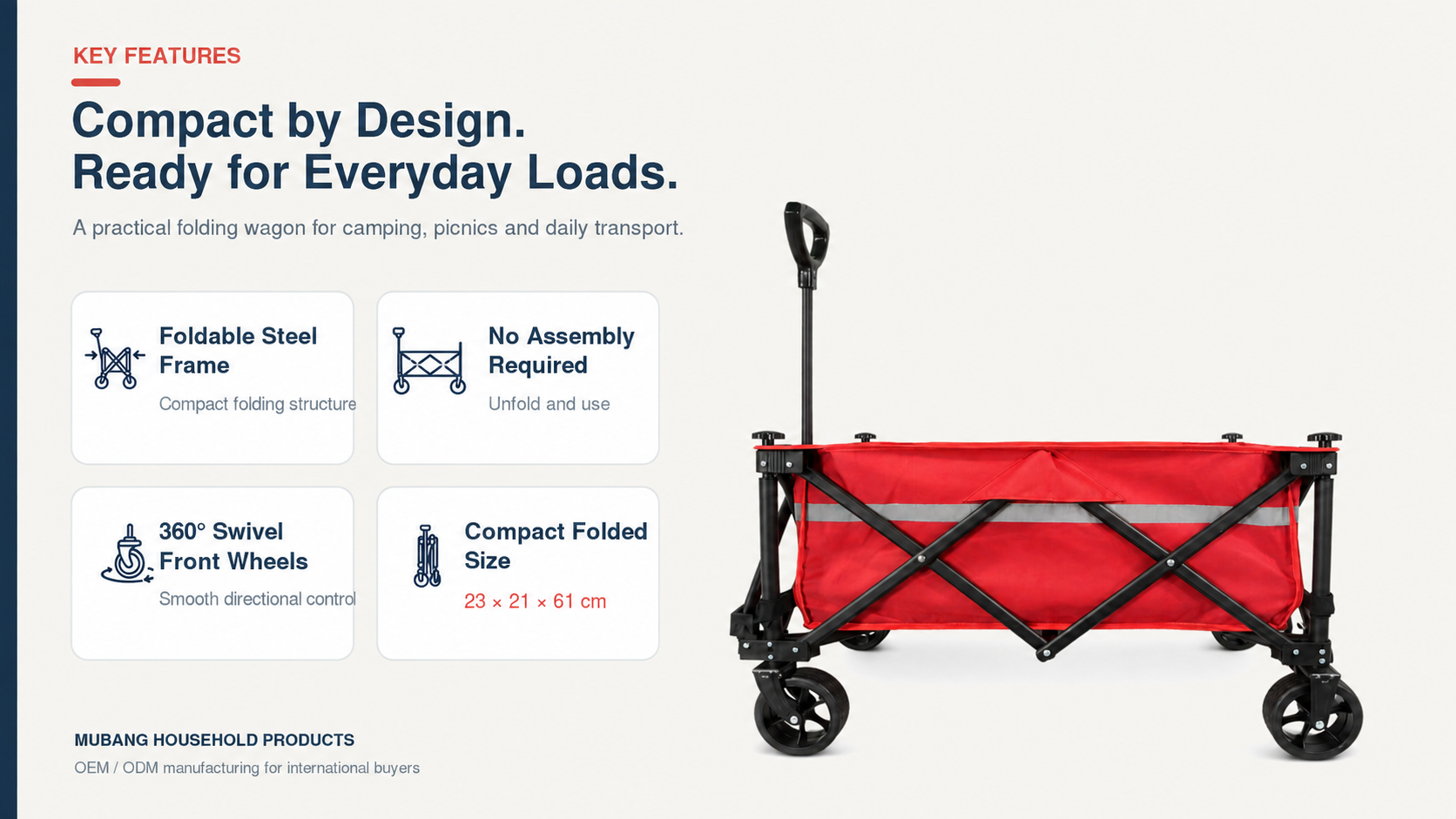

Push-Pull Collapsible Camping Wagon — Key Features — OG-CW-002
Key Features

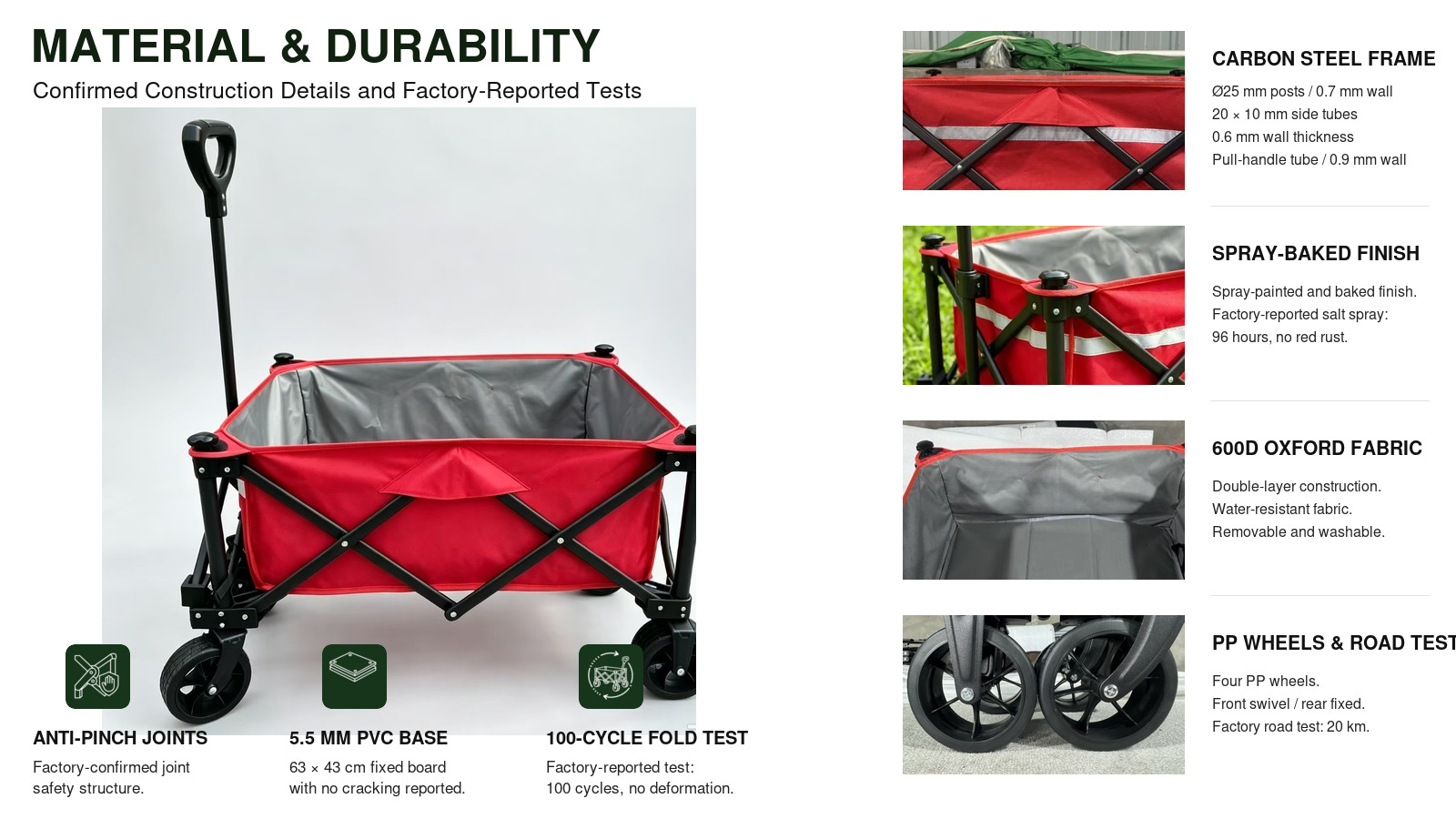

Push-Pull Collapsible Camping Wagon — Material & Construction — OG-CW-002
Material & Construction

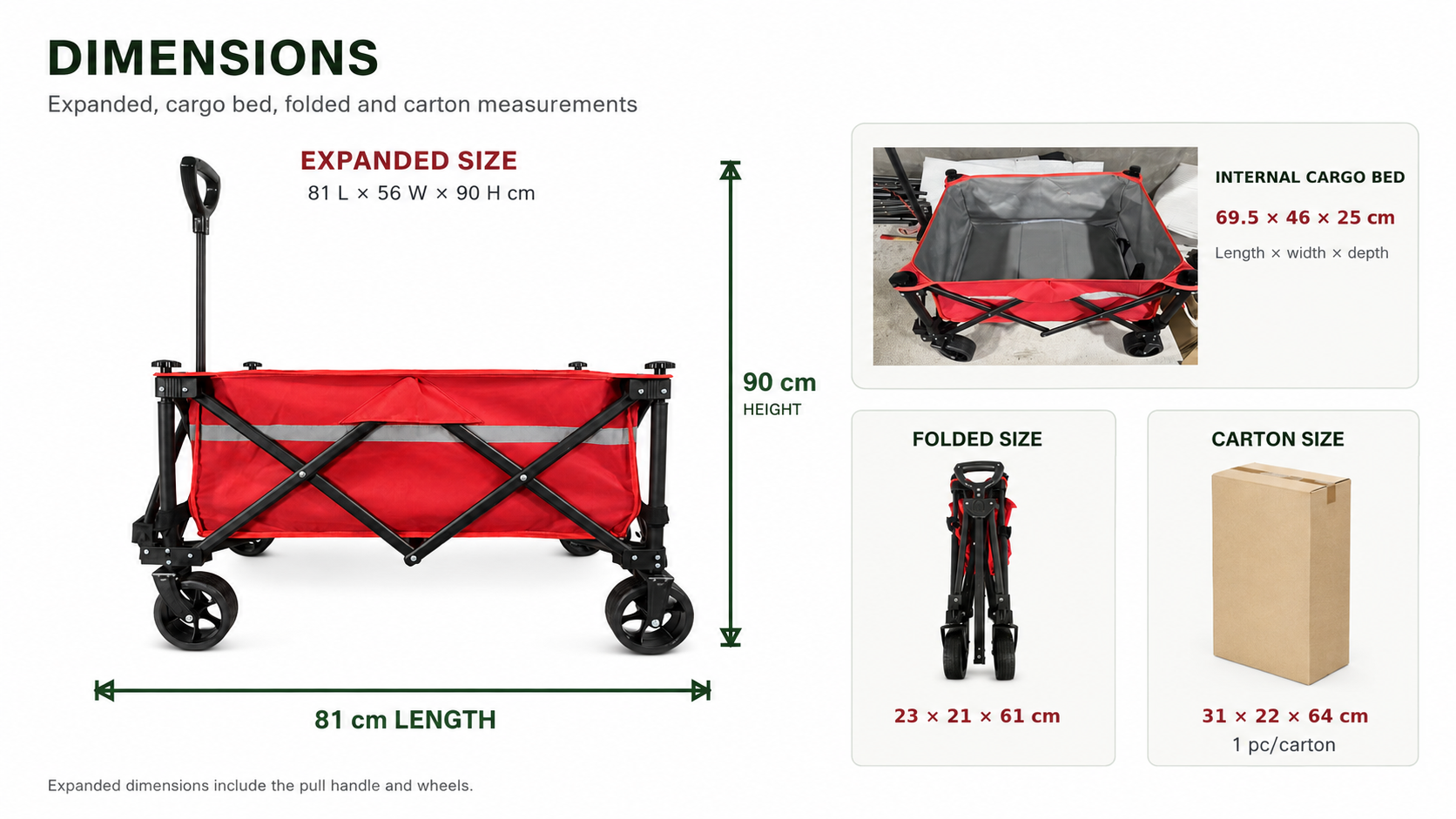

Push-Pull Collapsible Camping Wagon — Dimensions & Specifications — OG-CW-002
Dimensions & Specifications

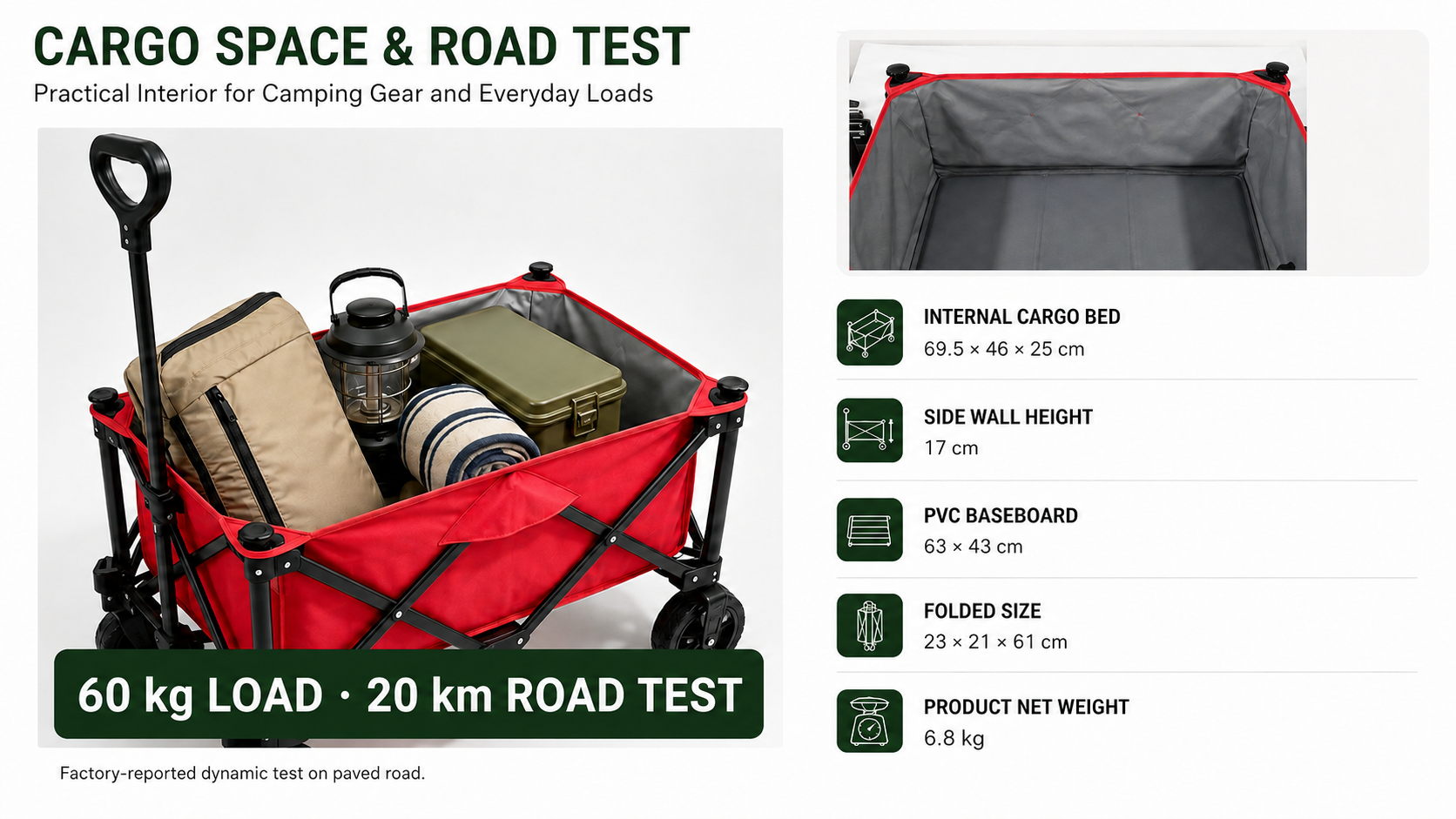

Push-Pull Collapsible Camping Wagon — Production Capacity — OG-CW-002
Production Capacity
Push-Pull Collapsible Camping Wagon — Lifestyle & Application — OG-CW-002
Lifestyle & Application

PRODUCT OVERVIEW

Made for a clear B2B product program.

The OG-CW-002 push-pull collapsible camping wagon is designed for transporting camping gear, picnic supplies and everyday utility loads. It combines a practical cargo bed with a foldable carbon-steel frame, double-layer 600D Oxford fabric, PP wheels and a PVC baseboard. The front telescoping pull handle and adjustable rear push handle provide flexible push-or-pull operation. The front wheels swivel 360° for easier maneuvering, while the fixed rear wheels support directional tracking. The removable, washable fabric body simplifies routine cleaning, and the wagon arrives ready to unfold without consumer assembly. With a folded size of 23 × 21 × 61 cm, the wagon can be stored in a car trunk or limited warehouse space. Standard colors include black, brown, red and beige green. OEM options are available for colors, logos, packaging and selected accessories, including brakes, canopies, tabletops, cup holders and storage bags.

KEY FEATURES

Core functions buyers can verify.

SPECIFICATIONS

Project data, confirmed before production.

Unconfirmed values are not estimated. Final dimensions, packing and weights must come from Website Product Database V4.0.

Material
Carbon Steel + Double-Layer 600D Oxford Fabric + PP Wheels + PVC Baseboard
Dimensions
Expanded: 81 × 56 × 90 cm; Cargo Bed: 69.5 × 46 × 25 cm; Folded: 23 × 21 × 61 cm
Packing
1 pc/carton; Carton Size: 31 × 22 × 64 cm
Net / gross weight
N.W. 6.8 kg / G.W. 7.6 kg

MANUFACTURING

Production line & key process

  1. 01Steel tube cutting and forming
  2. 02Frame welding
  3. 03Spray coating and baking finish
  4. 04Fabric body and PVC baseboard assembly
  5. 05Wheel and handle assembly
  6. 06Folding and steering function inspection
  7. 07Finished-product inspection
  8. 08Protective packing and carton packing

CUSTOMIZATION / OEM

Confirmed project options

  • Standard colors: Black, Brown, Red and Beige Green
  • Custom fabric, frame and wheel colors
  • Custom logo and logo placement
  • Adjustable rear push-handle configuration
  • Optional brakes, canopy and tabletop
  • Optional cup holders, side bags and storage accessories
  • Custom carton, color box and labels
  • Multilingual instructions available
  • Structural and accessory customization subject to project review

Final feasibility follows drawing, sample and production-condition review. Unconfirmed claims are not added to the project specification.
